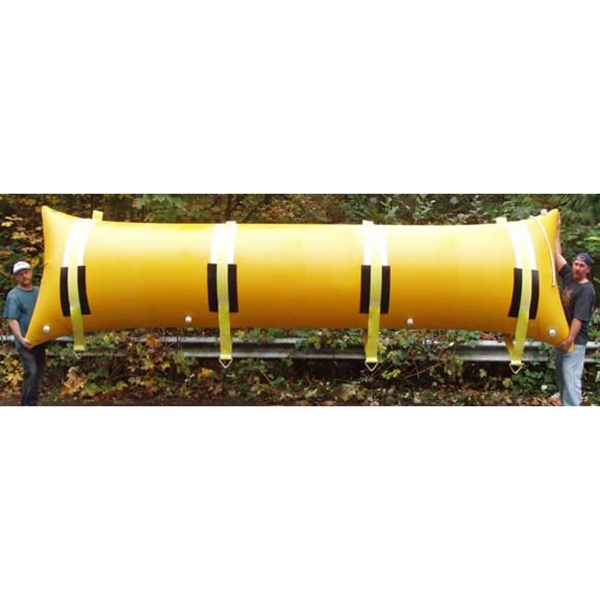

Inflatable Buoyancy Bags

Inflatable buoyancy bags/pontoon air lift bags are manufactured using high-quality PVC coating fabric. It is equipped with heavy duty webbing harness, and screw pin shackles, over-pressure valves, stainless steel valves and quick disconnects.

BASIC INFO

Inflatable buoyancy bags/pontoon air lift bags are manufactured using high-quality PVC coating fabric. It is equipped with heavy duty webbing harness, and screw pin shackles, over-pressure valves, stainless steel valves and quick disconnects.

Inflatable buoyancy bags are enclosed cylinder shape. Inflatable buoyancy bags can be used as salvage tube, salvage pontoon for the supporting docks and other floating structures, and they also excellent for the pipelaying and other underwater construction projects.

Features and Advantages:

–    Made of heavy duty PVC coated polyester fabric
–    All seams are RF welded
–    Fold compactly for easy efficient storage
–    3/4” B.S.P air inlet stainless/brass ball valves
–    Certificate Webbing harness (with 6:1 safe working factor) terminate with end shackles
–    Delivered ready for use
–    Lift capacity from 500kg to 5000kg
–    Custom sizes and types available

Specification:

Model Lift Capacity Diameter Length Package Size Appr. Weight
kg lb m m m kg
IBB-500 500 1100 0.46 3.05 0.08*0.20*0.35 10
IBB-1000 1000 2200 0.56 3.66 0.12*0.22*0.46 25
IBB-1500 1500 3300 0.74 3.43 0.21*0.22*0.43 35
IBB-2000 2000 4400 0.74 4.57 0.21*0.25*0.57 50
IBB-5000 5000 11000 1.1 5.81 1.11*0.30*0.73 70
