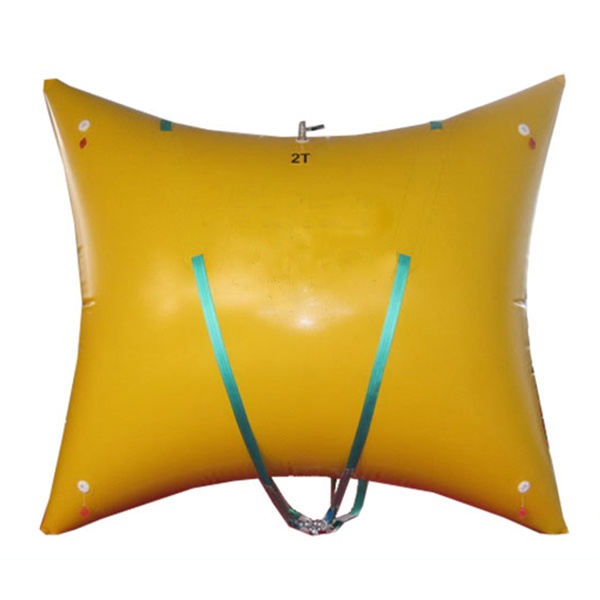

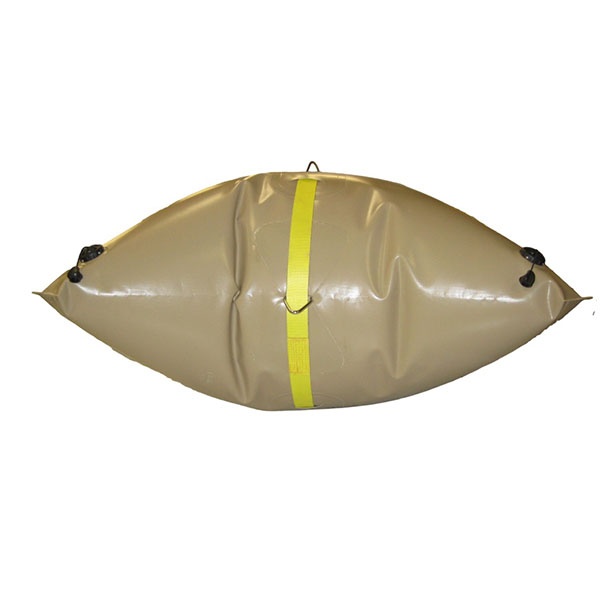

Pillow Type Lift Bags

Pillow Type enclosed flotation bags are manufactured of high-strength PVC coating fabric, which is highly abrasion, and UV resistant. Each enclosed pillow type air lift bag is equipped with heavy duty webbing harness with single pick points and screw pin shackle, over-pressure valves, stainless steel ball valves and quick disconnects.

BASIC INFO

Pillow Type enclosed flotation bags are manufactured of high-strength PVC coating fabric, which is highly abrasion, and UV resistant. Each enclosed pillow type air lift bag is equipped with heavy duty webbing harness with single pick points and screw pin shackle, over-pressure valves, stainless steel ball valves and quick disconnects.

Pillow type lift bag is one kind versatile underwater air lift bags with totally enclosed pillow shape. Enclosed pillow lift bags can be used in shallow water with the maximum lift capacity for the refloatation work and towing jobs.

Features and Advantages:

–    Made of heavy duty PVC coated polyester fabric
–    All seams are RF welded seams
–    Portable for rapid deployment
–    Fold compactly for easy carrying and storage
–    Certificated Webbing harness with single shackle fixing point
–    Auto over pressure relief valves equipped
–    Design safety working factor 6:1
–    3/4” B.S.P air inlet stainless steel ball valves with quick release
–    Delivered ready for use
–    Lifting capacity from 100kg to 4tonnes
–    Custom sizes and types available

Specification:

Model Lift Capacity Width Length Package Size Appr. Weight
kg lb m m m kg
EPB-100 100 220 0.76 1.02 0.40*0.30*0.20 5.5
EPB-250 250 550 0.82 1.32 0.45*0.31*0.22 9.3
EPB-500 500 1100 1.2 1.3 0.45*0.35*0.25 14.5
EPB-1000 1000 2200 1.42 1.55 0.50*0.35*025 23
EPB-2000 2000 4400 1.78 1.95 0.56*0.38*0.35 32.1
EPB-3000 3000 6600 1.95 2.9 0.68*0.45*0.35 41.2
EPB-4000 4000 8400 2.03 3.23 0.78*0.50*0.38 52.5
