Anchor Pendant Buoy

Anchor pendant buoys are available in a wide range of sizes, with suitcase, modular and non-modular type, and in custom and standard configurations. All are supplied with removable central steelwork configured as per the customer’s requirements - be it the typical handing crucifix/padeye arrangement or a through hawse for use with anchor wire rather than chain.

BASIC INFO

Anchor pendant buoys are available in a wide range of sizes, with suitcase, modular and non-modular type, and in custom and standard configurations. All are supplied with removable central steelwork configured as per the customer’s requirements – be it the typical handing crucifix/padeye arrangement or a through hawse for use with anchor wire rather than chain.

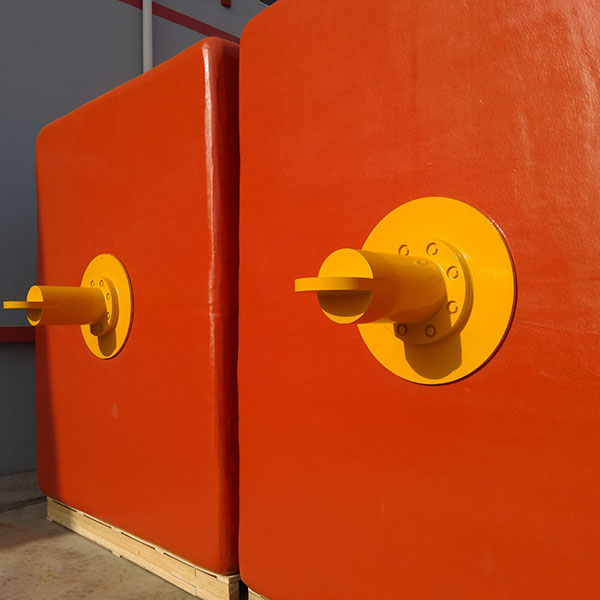

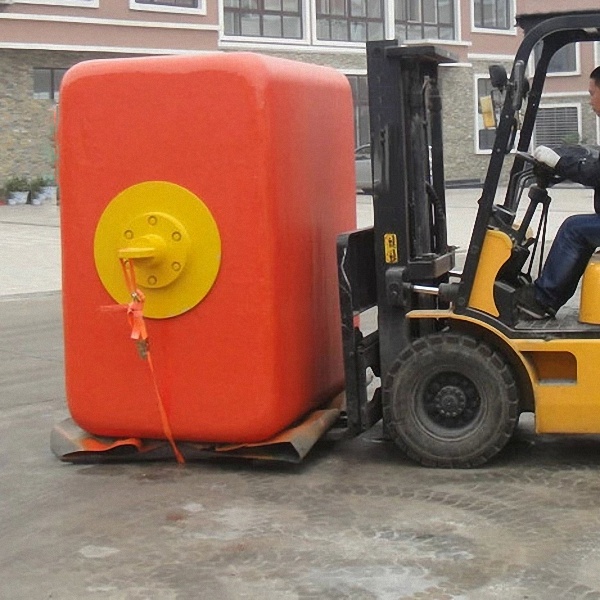

1、Suitcase Anchor Pendant Buoy
– Made of resilient, closed cell polyethene foam
– Specifical design with large flat surfaces for safe and secure storage onboard anchor handling vessels.
– Rectangular shape for easy and safe storage and transporation.
– A self colored polyurethane elastmer protective coating with high abrasion resistant.
– Custom sizes and types available

2、Modular Anchor Pendant Buoy:
– Consist of removable interchangeable modules with discrete end modules and center modules assembled into central steelwork and fixed in position with retaining flange
– Made from a high performance, low density rigid PE/PU foam core, with a polymer skin
– 1tonne to 100 tonne nett buoyancy
– Nominal skin thickness is 12~14mm with bright/orange color

Specification:

Suitcase Anchor Pendant Buoy
Model Reserve Buoyancy
(kg)
Diameter
(mm)
Float Length
(mm)
Overall Length
(mm)
Nominal Weight
(kg)
MET-SPB1000 1000 1350 1100 1900 300
MET-SPB2000 2000 1500 1500 2600 500
MET-SPB3000 3000 1850 1500 2600 600
MET-SPB4000 4000 2000 1900 2900 850
MET-SPB6000 6000 2500 2200 3250 1000
MET-SPB8000 8000 2500 2200 3250 1250
MET-SPB10000 10000 3000 2200 3500 1550
MET-SPB20000 20000 3500 3000 4200 2400
