Inflatable Mooring Buoy

Inflatable mooring buoy is used regularly as a mooring buoy, but because of its strength and flexible center tube it is used in many other applications. Inflatable Mooring Buoy has been designed to provide the ultimate in strength, durability, and boat protection, giving increased security to any mooring.

BASIC INFO

Introduction of Inflatable Mooring Buoy:

Inflatable mooring buoy is used regularly as a mooring buoy, but because of its strength and flexible center tube it is used in many other applications. Inflatable Mooring Buoy has been designed to provide the ultimate in strength, durability, and boat protection, giving increased security to any mooring.

IM-CC Series Buoy:

1.Features of IM-CC Series Buoy
-Even wall thickness for maximum strength and durability
-Reinforced flexible center tube
-Useful in a variety of applications

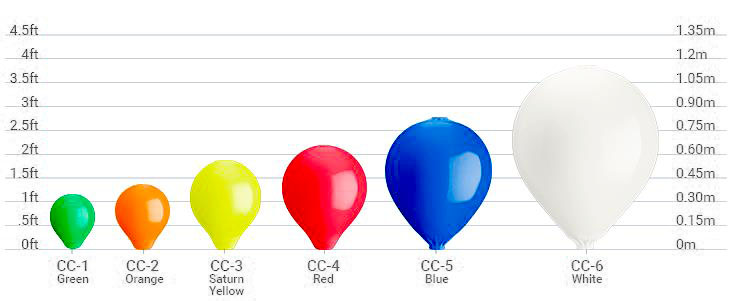

2.Specification of IM-CC Series Buoy

MODEL CC-1 CC-2 CC-3 CC-4 CC-5 CC-6
SIZE
(diameter*length)
26.7*33cm 35.6*41.9cm 43.2*53.3cm 50.8*64.8cm 68.6*83.3cm 81.3*109.2cm
TUBE DIAMETER 3.8cm 5.1cm 5.1cm 5cm 7.6cm 7.6cm
CIRCUMFERENCE 83.8cm 111.8cm 135.7cm 159.7cm 215.5cm 255.5cm
VOLUME 11.71 23.11 47.71 69.31 170.1 350.21
SIZE(ID*OD) 2.54*5.08cm 5.08*5.08cm 5.08*5.08cm 5.08*5.08cm 7.62*7.62cm 7.62*7.62cm
PIECES PER CARTON 10cm 10cm 4cm 4cm 2cm 2cm

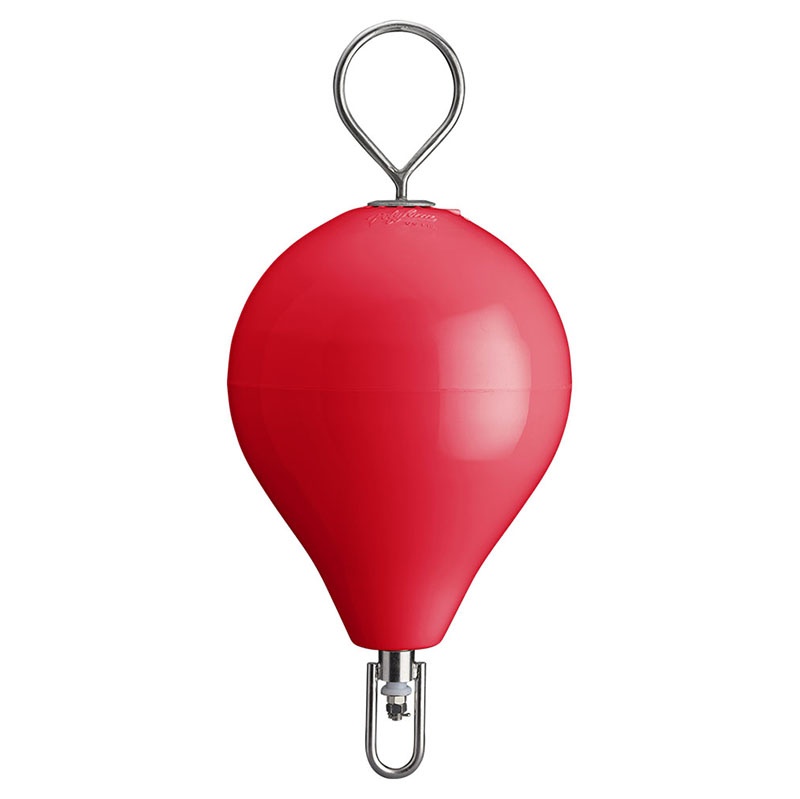

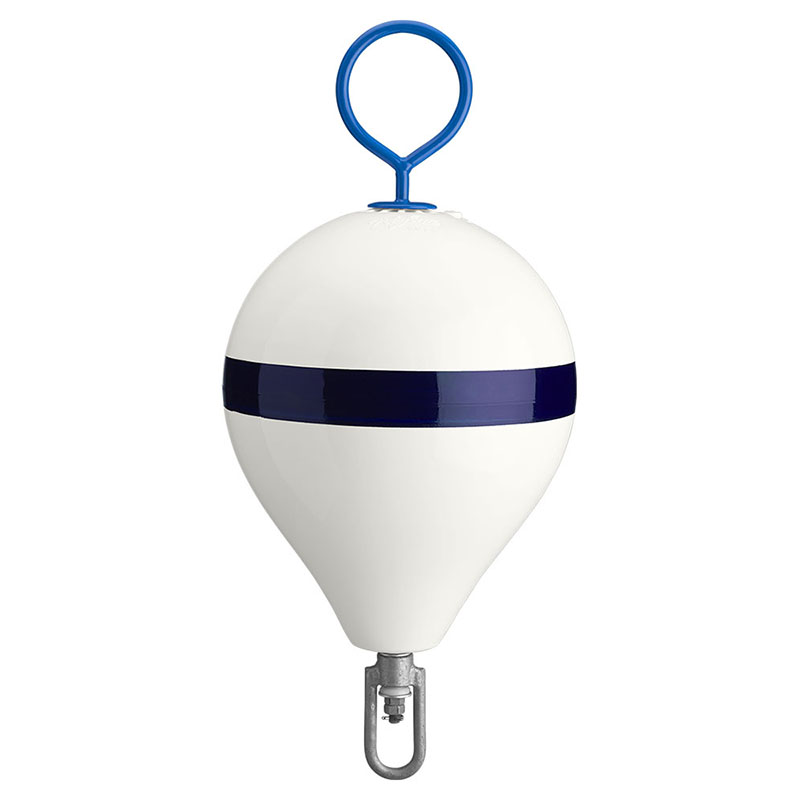

IM-CM Series Buoy

1.Features of IM-CM Series Buoy

– Mooring Iron made with vinyl-protected galvanized or stainless steel
– Large reinforced 4-3/8″ eye and 1-1/2″ swivel
– Soft vinyl surface protects boat finishes
– Even wall thickness for maximum strength and durability

2.Specification of IM-CM Series Buoy

MODEL CM-2 CM-3
SIZE
(diameter*length)
34.3*45.7cm 43.2*55.9cm
TUBE DIAMETER 1.6cm 1.6cm
CIRCUMFERENCE 107.8cm 138.7cm
VOLUME 251 44.71
SIZE(iron length w/shackle) 78.7cm 88.9cm
PIECES PER CARTON 1 1
