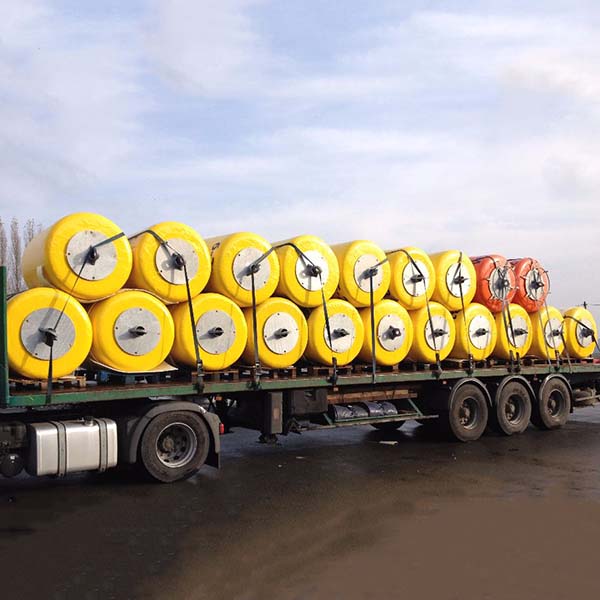

Polyethylene Mooring Buoy

Polyethylene mooring buoys are used extensively in mooring systems, which are manufactured from a polyethylene thermo-laminated foam core encapsulated with self-colored polyurethane out skin. With accessories of bridle chain, short chain, half chain, long chain as well as connection shackles, end shackles, swivel shackles.

BASIC INFO

Introduction:
Polyethylene mooring buoys are used extensively in mooring systems, which are manufactured from a polyethylene thermo-laminated foam core encapsulated with self-colored polyurethane out skin. With accessories of bridle chain, short chain, half chain, long chain as well as connection shackles, end shackles, swivel shackles.

 Features:
– High quality closed-cell PE/EVA resilient foam
– Tough nylon filament reinforced PU skin
– Steel work and end assembly
– High environmental protect
– High impact / corrosion/ weather resistance
– Longer life
– Maintenance free

Specifications:

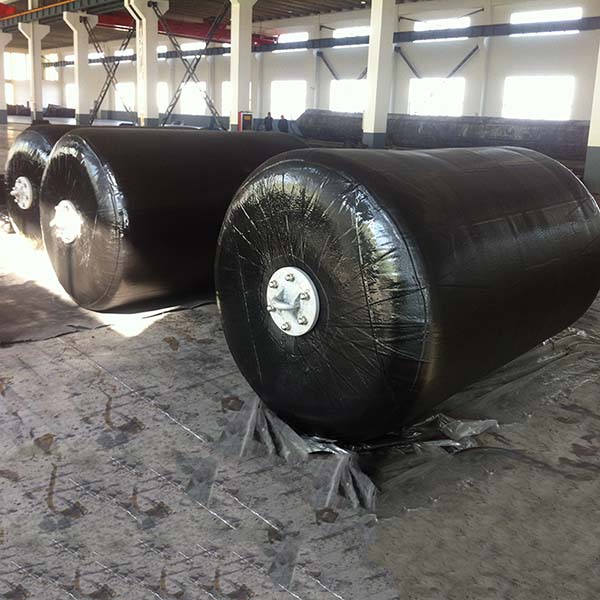

Cylindrical Buoy (MET-CB)
– Removable clevis plate/eye
– Central tension member designed to suit the client’s Safe Working Load

Model Buoyancy
(kg)
Diameter
(mm)
Body length
(mm)
Overall length
(mm)
Weight in air
(kg)
MET-CB 1000 1000 1080 1550 2200 375
MET-CB 1250 1250 1160 1550 2200 380
MET-CB 1500 1500 1130 2000 2666 445
MET-CB 1700 1700 1180 2000 2666 445
MET-CB 1750 1750 1190 2000 2666 460
MET-CB 1850 1850 1230 2000 2666 470
MET-CB 2000 2000 1290 2000 2666 485
MET-CB 2250 2250 1340 2000 2666 500
MET-CB 2500 2500 1400 2000 2666 515
MET-CB 2800 2800 1510 2000 2666 595
MET-CB 3000 3000 1520 2000 2666 550
MET-CB 3200 3200 1560 2000 2666 560
MET-CB 3500 3500 1630 2000 2666 580
MET-CB 3900 3900 1705 2000 2666 605

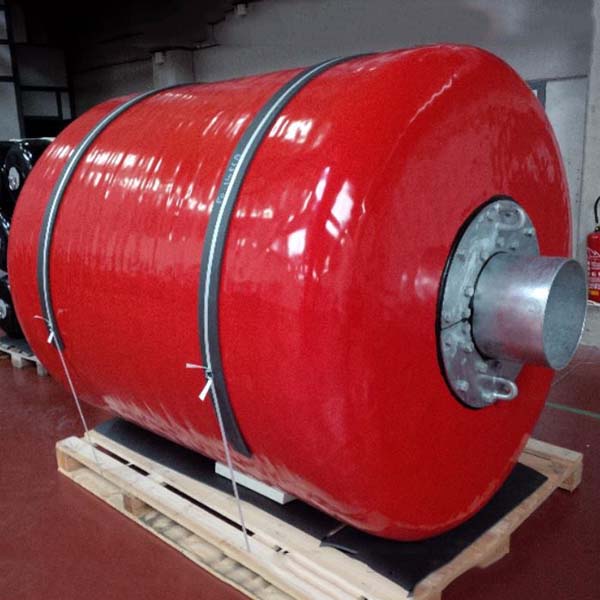

Chain-Through Buoy (MET-CTB)
-Central tube for chain to pass through
-Chain locking device, on one and or both, securing the buoy to the chain

Model Buoyancy(kg) Diameter
(mm)
Body length
(mm)
Overall length(mm) Weight in air
(kg)
MET-CTB 1500 1500 1195 2000 2666 520
MET-CTB 1750 1750 1260 2000 2666 545
MET-CTB 2000 2000 1325 2000 2666 560
MET-CTB 2250 2250 1395 2000 2666 580
MET-CTB 2500 2500 1450 2000 2666 610
MET-CTB 2750 2750 1505 2000 2666 630
MET-CTB 3000 3000 1565 2000 2666 658
MET-CTB 3500 3500 1680 2000 2666 750
MET-CTB 4500 4500 1900 2000 2666 880

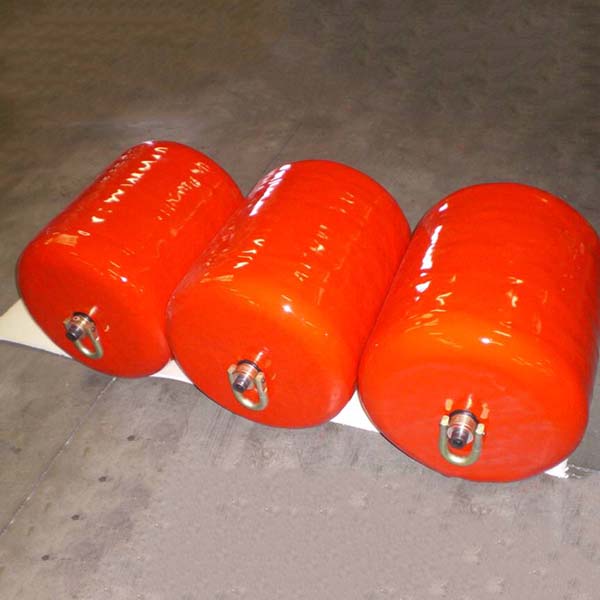

Pick-up Buoy (MET-PUB)
– Pick-up buoy is used for mooring, marker and pick-up duties.

Model Buoyancy(kg) Diameter

(mm)

Body length

(mm)

Overall length

(mm)

SWL

(tonne)

Weight in air

(kg)

MET-PUB 90 90 515 665 1000 1.2 42
MET-PUB 225 225 690 914 1570 16 120
MET-PUB 400 440 900 914 1570 16 155
MET-PUB 800 800 1150 914 1570 16 180
