BASIC INFO

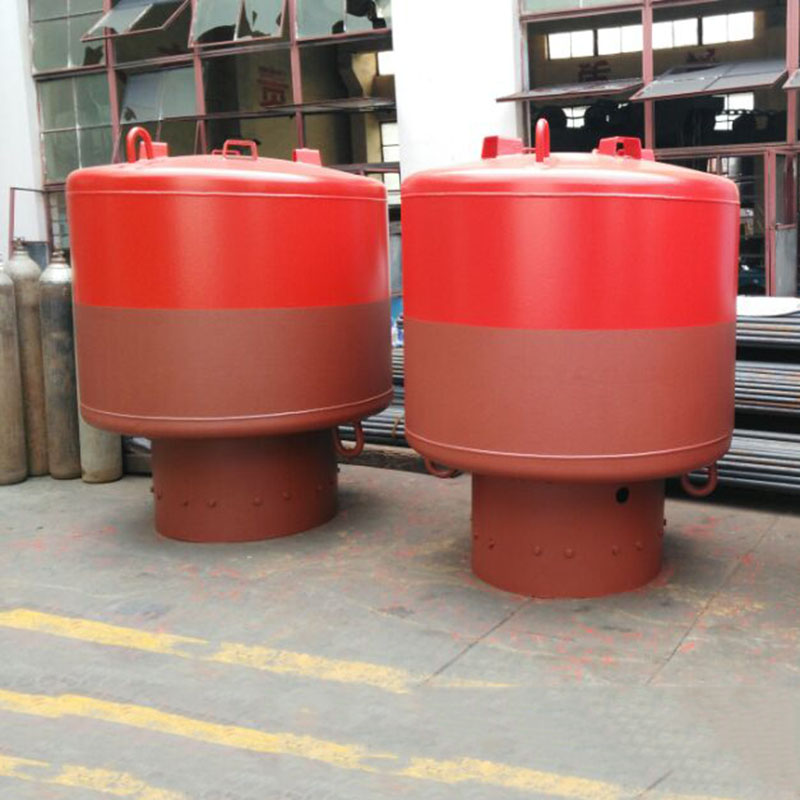

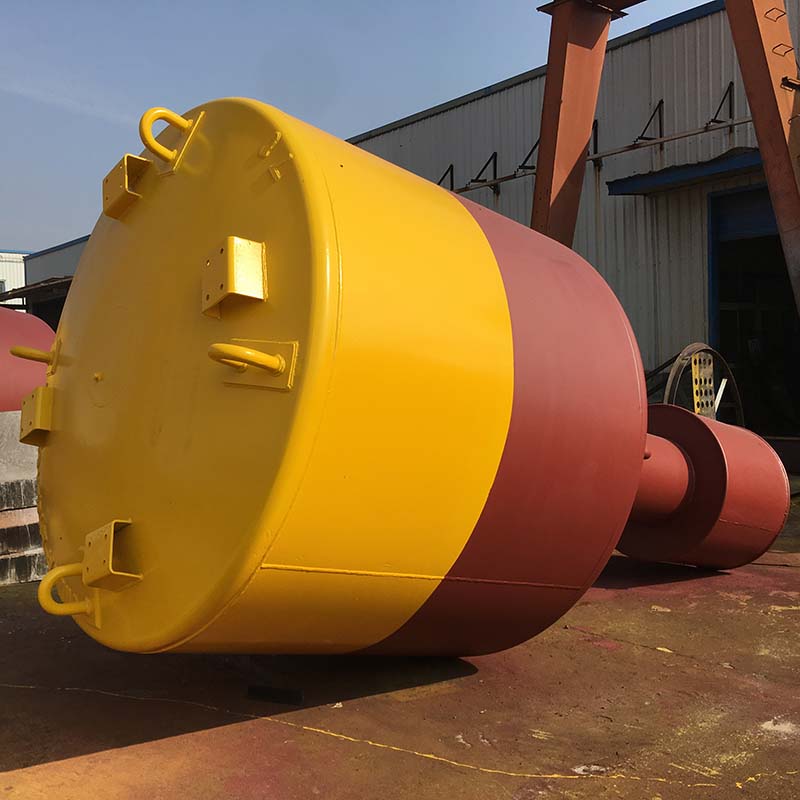

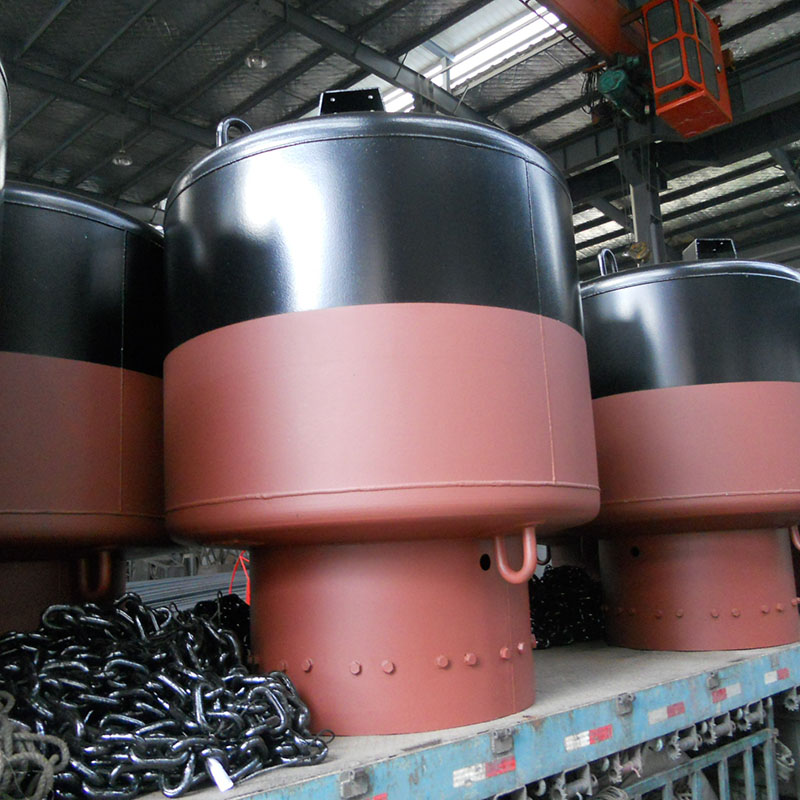

Steel mooring buoy is available for anchorage of ships of different tonnage. It is quite convenient and flexible to operate as using mooring buoy in anchorage. On the berth goods lightering work and maintenance and repair of ships can be conducted. Therefore, the mooring buoy is the important anchoring facility of the port.
Features:
– Good Stability
– Long Service Life
– High Luminous Efficiency
– Convenient Installation and Maintenance
– High Safety Performance
– Energy Saving
– Environment Protection
– High Wind Resistance Performance
– Strong Anti Hail Ability
– Economical and Practical
Specification:
| Type | Buoyancy (without chain) (t) | Diameter X Height (m) | Chain Diameter (mm) | Lifting Bye (mm) | Recommend Sinker (t) | Mooring Shackle (mm) | Suitable for Ship Tonnage (t) |
| 2.0 | 3 | 2.0*1.74 | 62 | 45 | 4 | 90 | <2000 |
| 2.6 | 6 | 2.6*2.27 | 70 | 45 | 6 | 90 | <5000 |
| 3.6 | 19 | 3.6*2.14 | 90-122 | 50 | 8 | 140 | <10000 |
| 5.0 | 28.5 | 5.0*3.4 | 122 | 60 | 12 | 140 | <12000 |
| 5.5 | 31.2 | 5.5*3.0 | 122 | <100000 | |||
| 6.0 | 34.2 | 6.0*3.2 | 122 | <150000 | |||
| 8.0 | 40.3 | 8.0*2.46 | 122 | 100 | 120 | 170 | <250000 |
