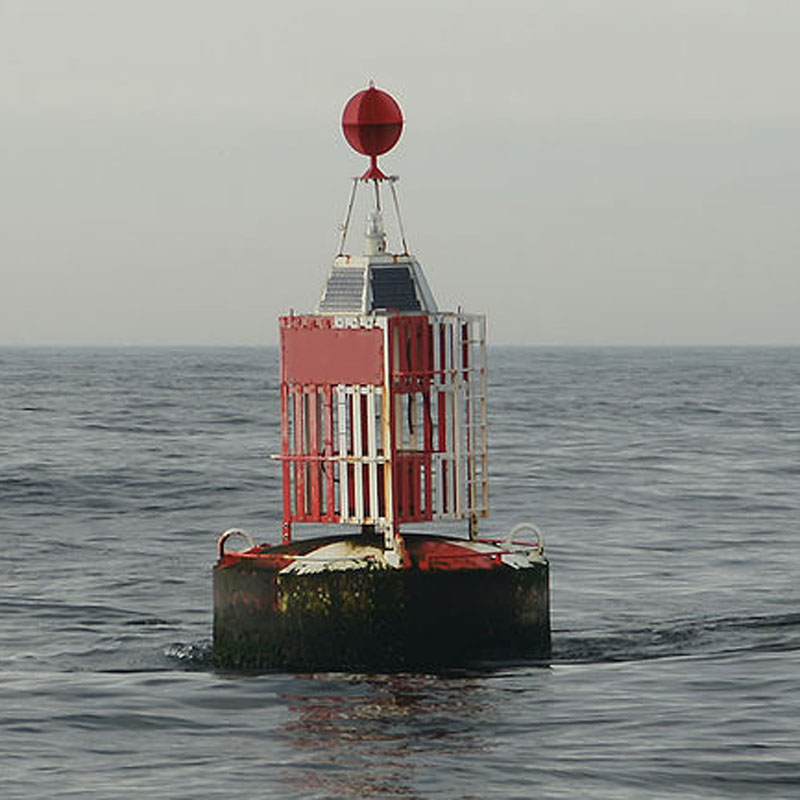

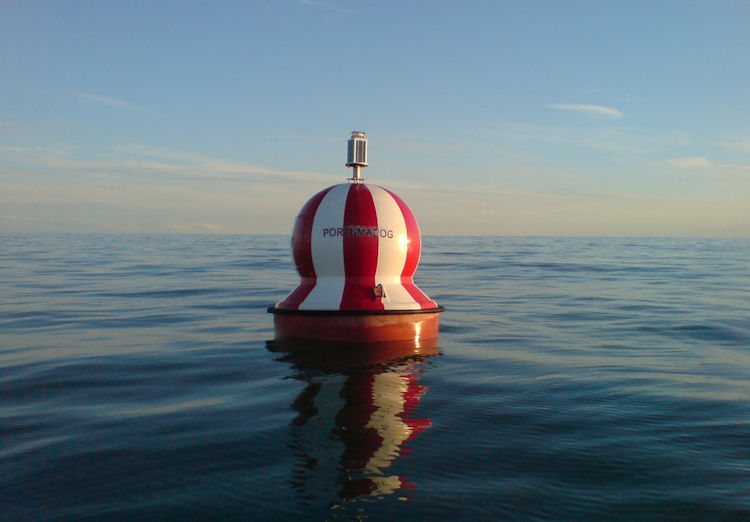

Safe Water Mark Buoy

Safe Water mark buoy serves to indicate that there is navigable water all round the mark. These include centre line marks and mid-channel marks. Such a mark may also be used to indicate channel entrance, port or estuary approach, or landfall. The light rhythm may also be used to indicate best point of passage under bridges.

BASIC INFO

Introduction :

Safe Water mark buoy serves to indicate that there is navigable water all round the mark. These include centre line marks and mid-channel marks. Such a mark may also be used to indicate channel entrance, port or estuary approach, or landfall. The light rhythm may also be used to indicate best point of passage under bridges.


Description :

Safe Water Mark
Colour Red and white vertical stripes
Buoy Shape Spherical; pillar or spar with spherical topmark
Topmark (if any) Single red sphere
Light Colour (when fitted) White
Light Rhythm (when fitted) Isophase, occulting, one long flash every 10 seconds or Morse “A”

Specification :

Model Diameter
(mm)
Buoying Depth (mm) Freeboard
(mm)
Focal Plane Height (mm) Net Weight
(kg)
Height(mm) Reserve Buoyancy (kg)
SWM800 800 2-10 45 1580 195 2628 230
SWM1200 1200 3-15 510 2040 550 3380 570
SWM1500 1500 4-20 632 2524 681 4300 1012
SWM1800 1800 6-30 722 3031 1686 5134 1546
SWM2100 2100 8-40 800 3518 1900 5757 2450
SWM2400 2400 10-50 920 4040 2973 6930 4015
SWM3050 3050 15-60 1114 5164 3490 9610 7646
SWM3500 3500 20-70 1240 6090 3863 8520 11380
Hall Thickness Mooring Chain Sinker Specification The Maximum swaying angle≤15°
Buoy (m) Thickness (mm) Buoy (m) Mooring Chain (mm) Buoy (m) Sinker (t)
1.2 10 1.2 17.5 1.2 0.5-1
1.5 10 1.5 22 1.5 1-1.5 Sunproof grade:8
1.8 15 1.8 28 1.8 2-3
2.4 15 2.4 32 2.4 3-6
3 15 3 38 3 5-8
