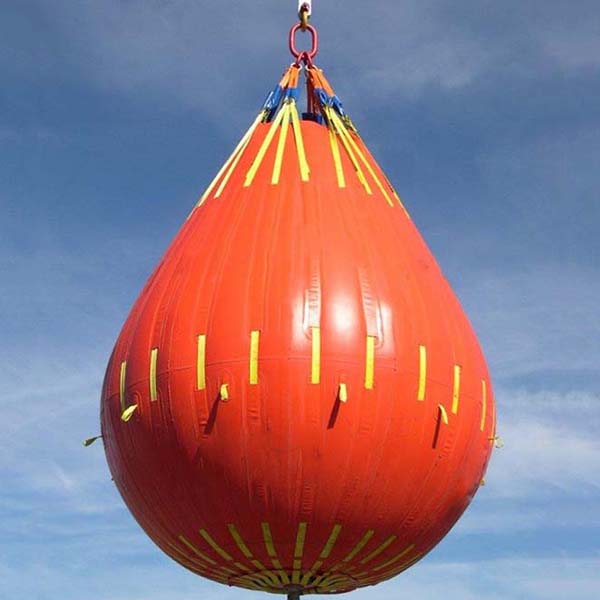

Load Test Water Bags

Load test water bags are made of heavy duty coating fabrics, equipped with all necessary filling/drain hose components and valves, master links, shackles, lifting belts, and incorporating with some innovative design.

BASIC INFO

Load test water bags are made of heavy duty coating fabrics, equipped with all necessary filling/drain hose components and valves, master links, shackles, lifting belts, and incorporating with some innovative design.

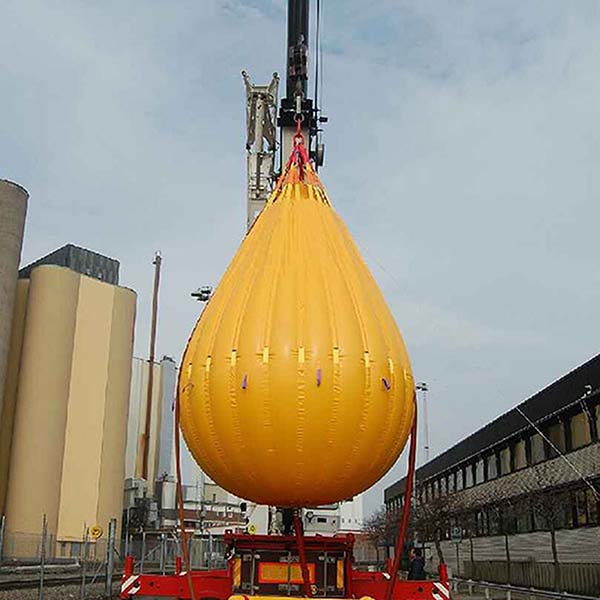

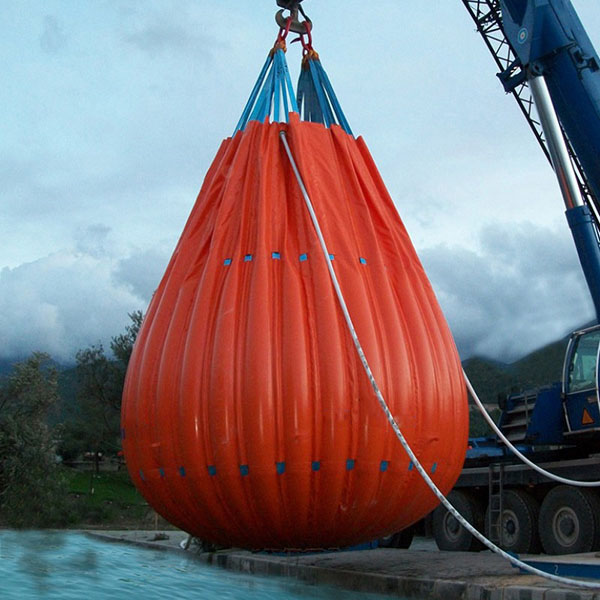

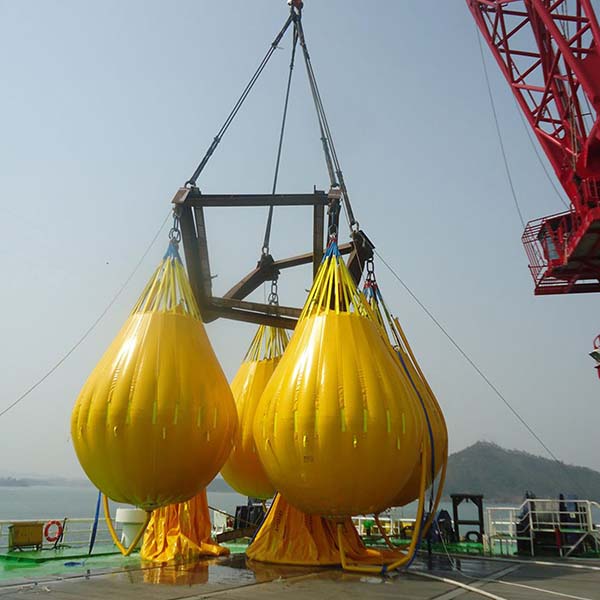

Load test water bags are designed for proof load testing for the lifting equipments and structures that request proof load testing weight when it’s newly finished, or periodic check or maintenance. Such as crane load testing, beam load testing, davit water load testing, derrick water load testing, overhead proof load testing.

Features and Advantages:

–  Made of heavy duty UV resistance PVC coating fabrics
–  Heavy duty webbing harness terminates with single steel lifting ring
–  Easy to handle and operate to enhance the work efficiency
–  Equipped with all accessories, ready for use
–  Multi size are available for unlimited variants of load test weight
–  6:1 safety factor verified
–  Safety, economy, convenience, high efficiency
–  Lift capacity from 1ton to 100ton
–  Custom sizes and types available

Specification:

Model Lift Capacity Diameter Length Dry Weight
kg m m kg
LTB-1 1000 1.3 2.2 35
LTB-2 2000 1.6 3.0 40
LTB-3 3000 2.0 2.8 50
LTB-5 5000 2.3 3.3 60
LTB-10 10000 2.6 5.6 100
LTB-12.5 12500 2.8 5.6 120
LTB-15 15000 3.0 5.8 150
LTB-20 20000 3.5 6.2 180
LTB-25 25000 3.6 6.4 220
LTB-30 30000 4.0 7.0 260
LTB-35 35000 4.2 7.3 300
LTB-50 50000 4.4 7.8 450
LTB-75 75000 5.2 8.5 600
LTB-100 100000 5.9 9.0 800
