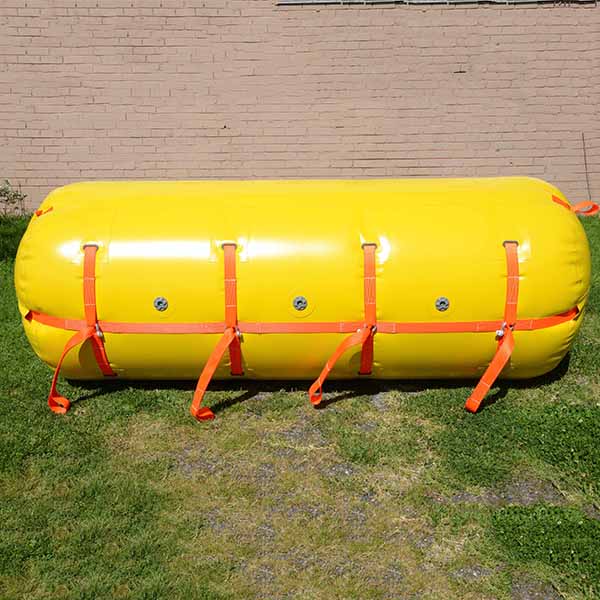

Totally enclosed air lift bags can be used for buoyancy support and refloatation operation in shallow water and on the surface, support/salvage pontoons for bridges, floating platforms, dock gates, sunken objects or military equipment.
Features and Advantages:
– Made of heavy duty PVC coated polyester fabric
– All seams are RF welded
– Fold compactly for easy efficient storage
– 3/4” B.S.P air inlet stainless/brass ball valves
– Certificate Webbing harness (with 6:1 safe working factor) terminate with end shackles
– Many Automatic Pressure Relief Valves
– Design Safety Working Factor 6:1
– Delivered ready for use
– Manufactured and Tested in accordance with IMCA D016, Rev3
– Lift capacity from 50kgs to 50tonnes
– Custom sizes and types available
Application:
– Suitable for shallow water usage
– Suitable for long term use
– Military equipment
– Bridge supports
– Pontoons
– Marine salvage and refloatation
– Extra buoyancy for pipe and cable float out operations
Specification:
| Model | Lift Capacity | Diameter | Length | Package Size | Appr. Weight | |
| kg | lb | m | m | m | kg | |
| TEB-50L | 50 | 110 | 0.3 | 0.6 | 0.60*0.30*0.20 | 5 |
| TEB-100L | 100 | 220 | 0.4 | 0.9 | 0.65*0.30*0.25 | 6 |
| TEB-250L | 250 | 550 | 0.7 | 1.1 | 0.70*0.35*0.30 | 8 |
| TEB-500L | 500 | 1100 | 0.9 | 1.4 | 0.80*0.35*0.30 | 10 |
| Model | Lift Capacity | Diameter | Length | Package Size | Appr. Weight | |
| kg | lb | m | m | m | kg | |
| TEB-1 | 1000 | 2200 | 1.0 | 1.8 | 1.20*0.40*0.30 | 18 |
| TEB-2 | 2000 | 4400 | 1.2 | 2.3 | 1.10*0.40*0.40 | 28 |
| TEB-3 | 3000 | 6600 | 1.4 | 2.5 | 1.20*0.50*0.45 | 39 |
| TEB-5 | 5000 | 11000 | 1.5 | 3.4 | 1.30*0.50*0.50 | 52 |
| TEB-6 | 6000 | 13200 | 1.6 | 3.6 | 1.35*0.50.0.50 | 66 |
| TEB-8 | 8000 | 17600 | 1.8 | 3.8 | 1.30*0.60*0.60 | 78 |
| TEB-10 | 10000 | 22000 | 2.1 | 3.6 | 1.30*0.80*0.60 | 89 |
| TEB-15 | 15000 | 33000 | 2.2 | 4.6 | 1.30*0.80.0.70 | 120 |
| TEB-20 | 20000 | 44000 | 2.4 | 5.6 | 1.30*0.80*0.75 | 138 |
| TEB-25 | 25000 | 55125 | 2.5 | 5.7 | 1.60*0.90*0.80 | 189 |
| TEB-30 | 30000 | 66000 | 2.7 | 6.1 | 1.60*0.90*0.80 | 280 |
| TEB-35 | 35000 | 77000 | 2.9 | 6.2 | 1.60*1.00*0.90 | 310 |
| TEB-50 | 50000 | 110000 | 2.9 | 8.0 | 1.60*1.00*1.00 | 340 |
